Install curtain either permanently to top of bay opening or hang from cable with quick links or spring links through grommets and around cable.

Order curtain with hem along bottom edge for pipe insertion. Install cable vertically next to support posts, place quick clamps through grommets on sides of curtain and around vertical cables. This holds the curtain out to the sides and along with the pipe in the hem keeps the curtain from sagging when it is raised.

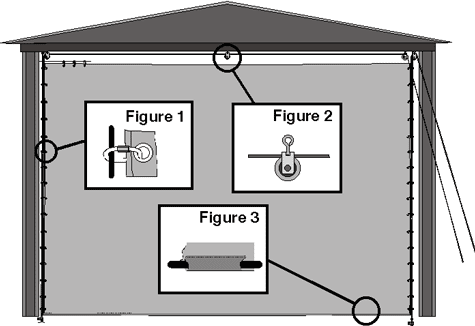

Figure 1:
Side section of curtain is attached to cable with quick links or spring links. The cable is then attached to the pipe in the bottom hem.

Figure 2:
Pulley System raises curtain from the bottom up.

Figure 3:
Bottom of curtain is hemmed to contain a pipe for weight and support.
